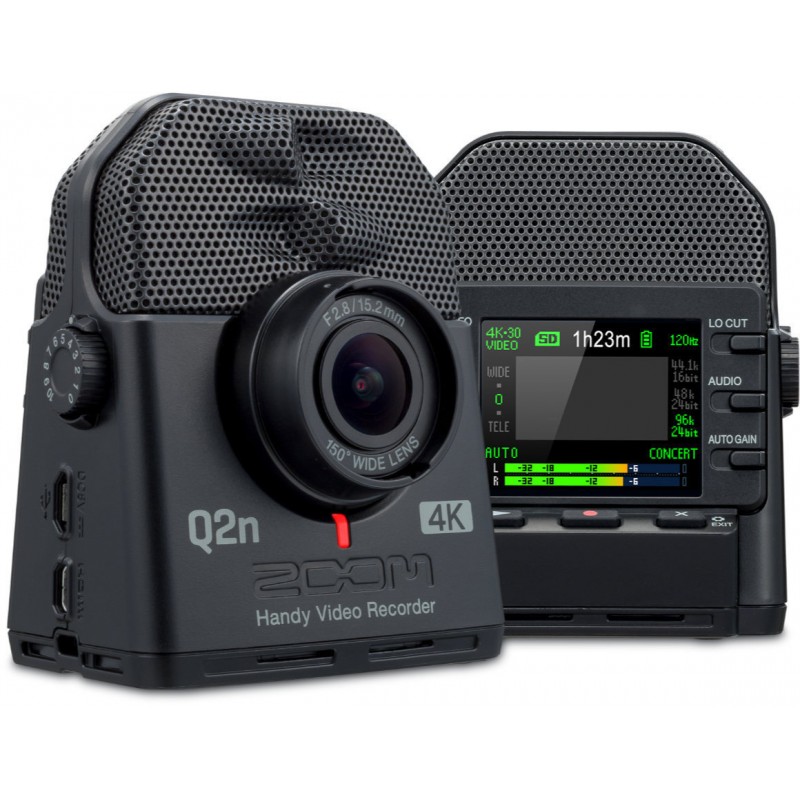

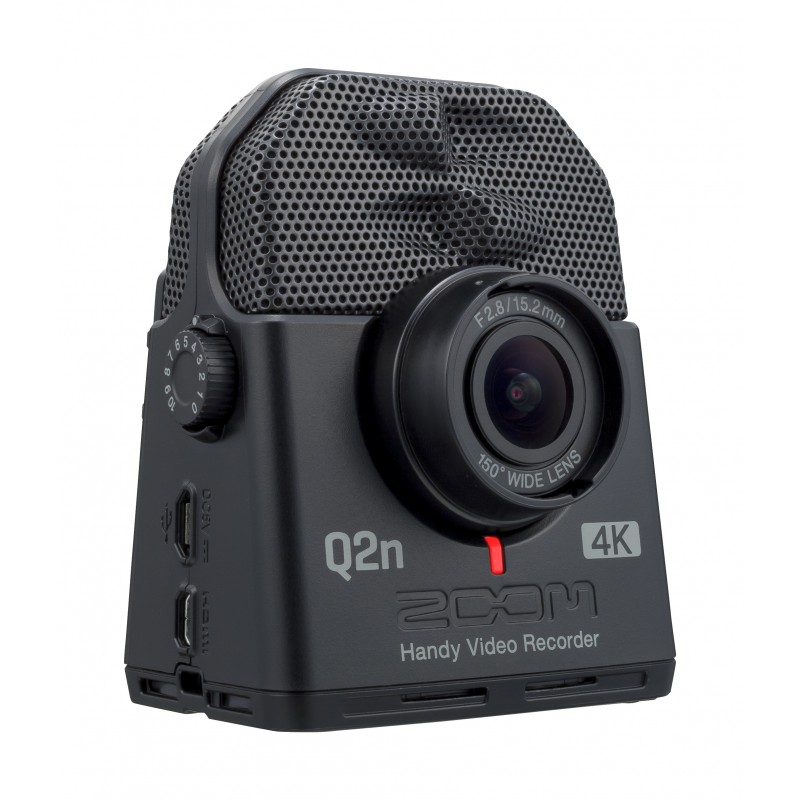

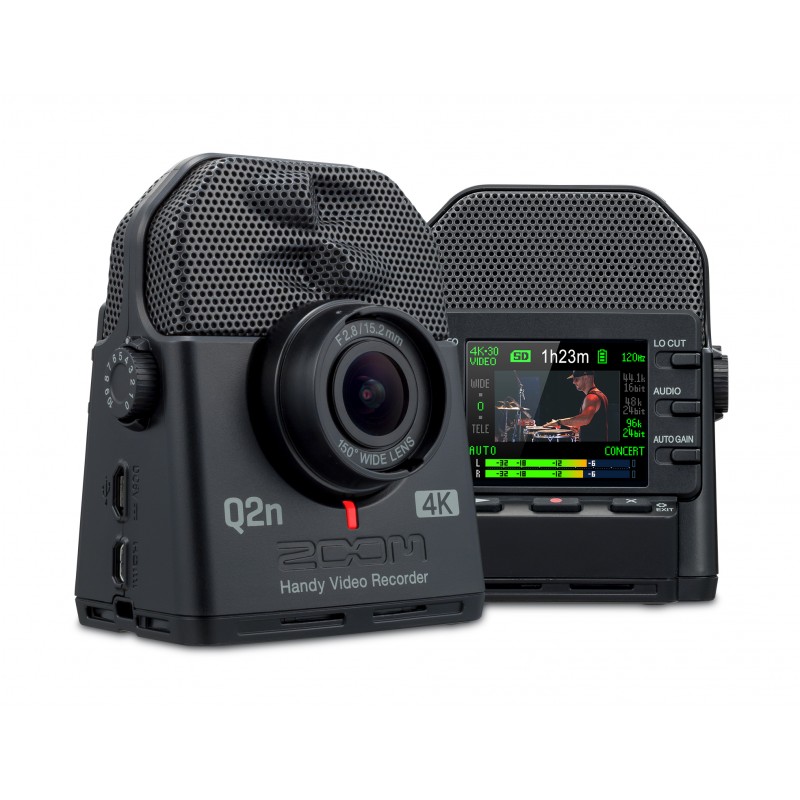

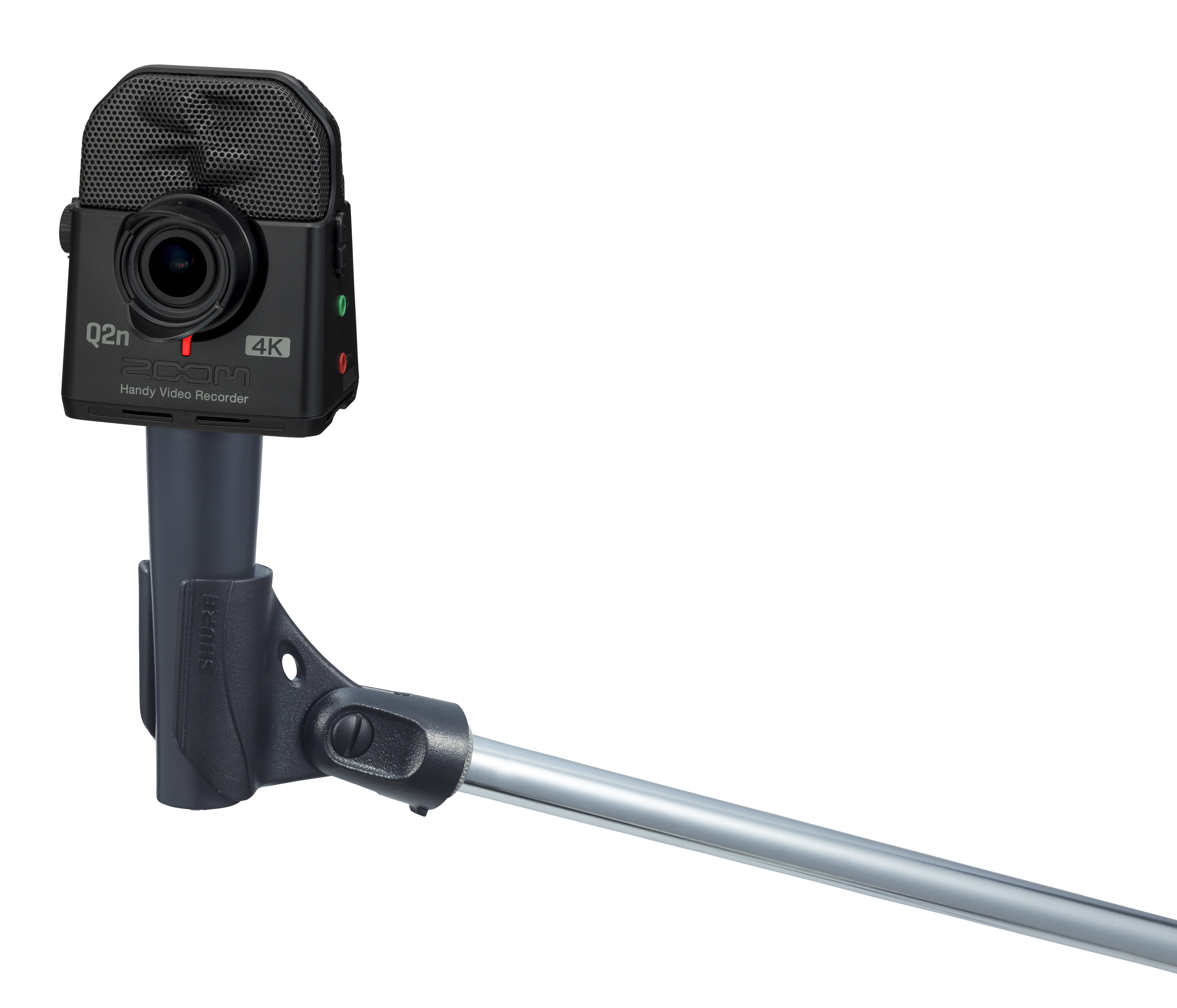

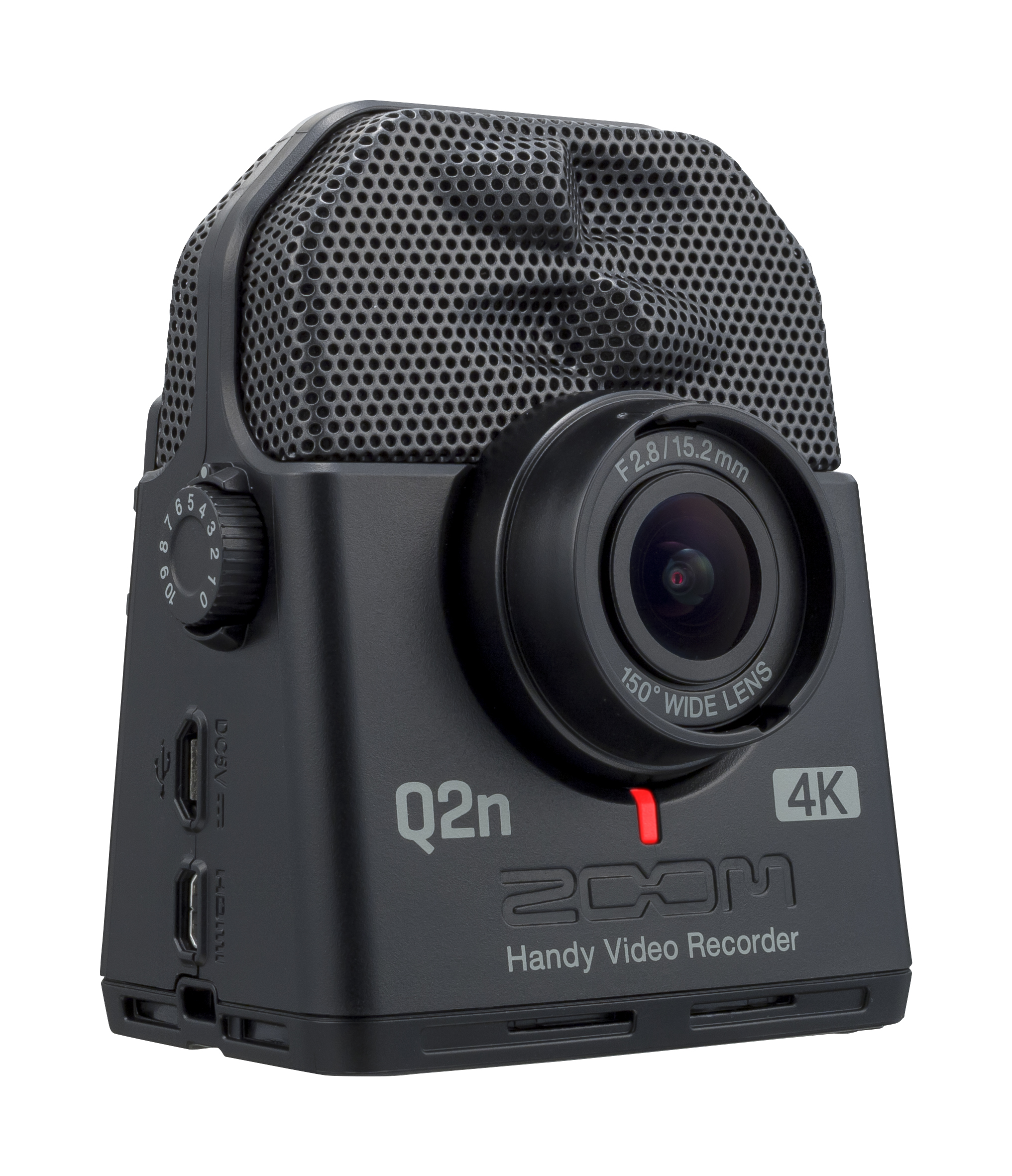

Zoom Q2n-4K - 4K Ultra HD kamera pre muzikantov

Zväčšiť obrázok

Popis

Image Sensor:

1/2.3" 16 M-flexible CMOS sensor

Lens:

F 2.8, 150° FOV

Video Format:

MPEG-4 AVC/H.264 (MOV)

Video resolutions:

4K: 30 p, 25 p, 24 p
1080: 60 p, 50 p, 30 p, 25 p, 24 p
720: 30 p, 25 p

Audio Formats:

WAV: 96 kHz/24-bit, 48 kHz/24-bit, 44.1 kHz/16-bit

Audio Functions:

• LO-CUT: Off, 80 Hz, 120 Hz, 160 Hz
• AUTO GAIN: OFF, CONCERT, SOLO, MEETING
• DELAY: 0.0 F, 0.5 F–10.0 F (only during web camera use)
• DIRECT MONITOR ON/OFF (only during USB mic use)

Image functions:

FOV (5 steps): WIDE–0–TELE

SCENE Settings
• AUTO
• OUTDOOR
• SUNSET
• NIGHT
• CONCERT LIGHT
• JAZZ CLUB,
• DANCE CLUB
• MONOCHROME
• SEPIA
• FILM
• X-PROCESS
• FLAT

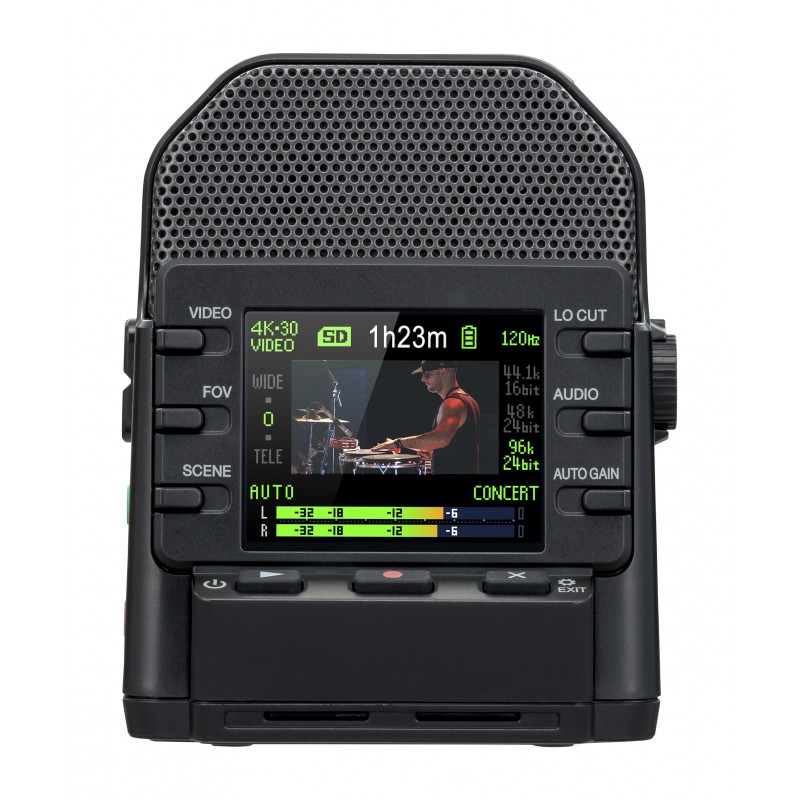

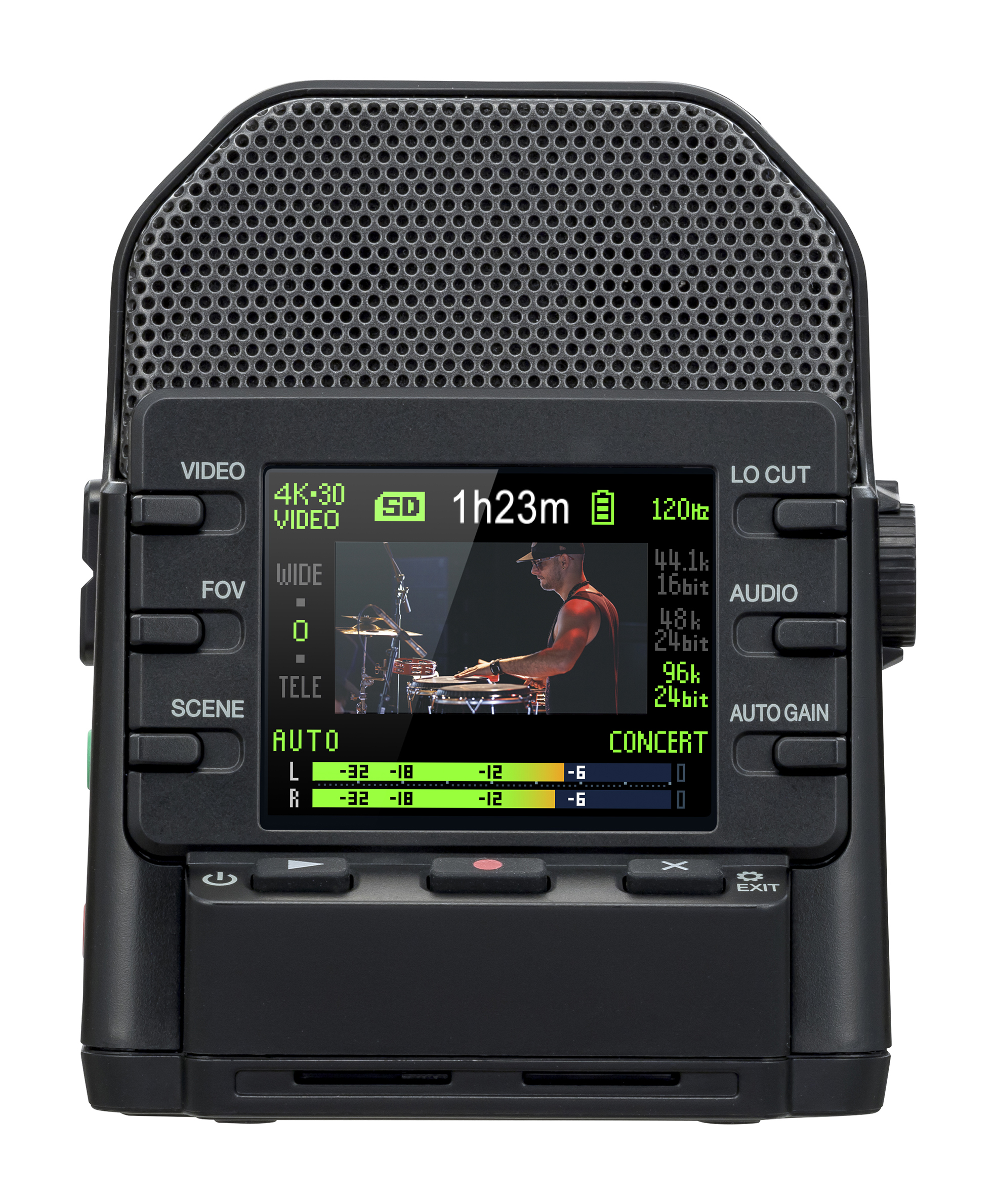

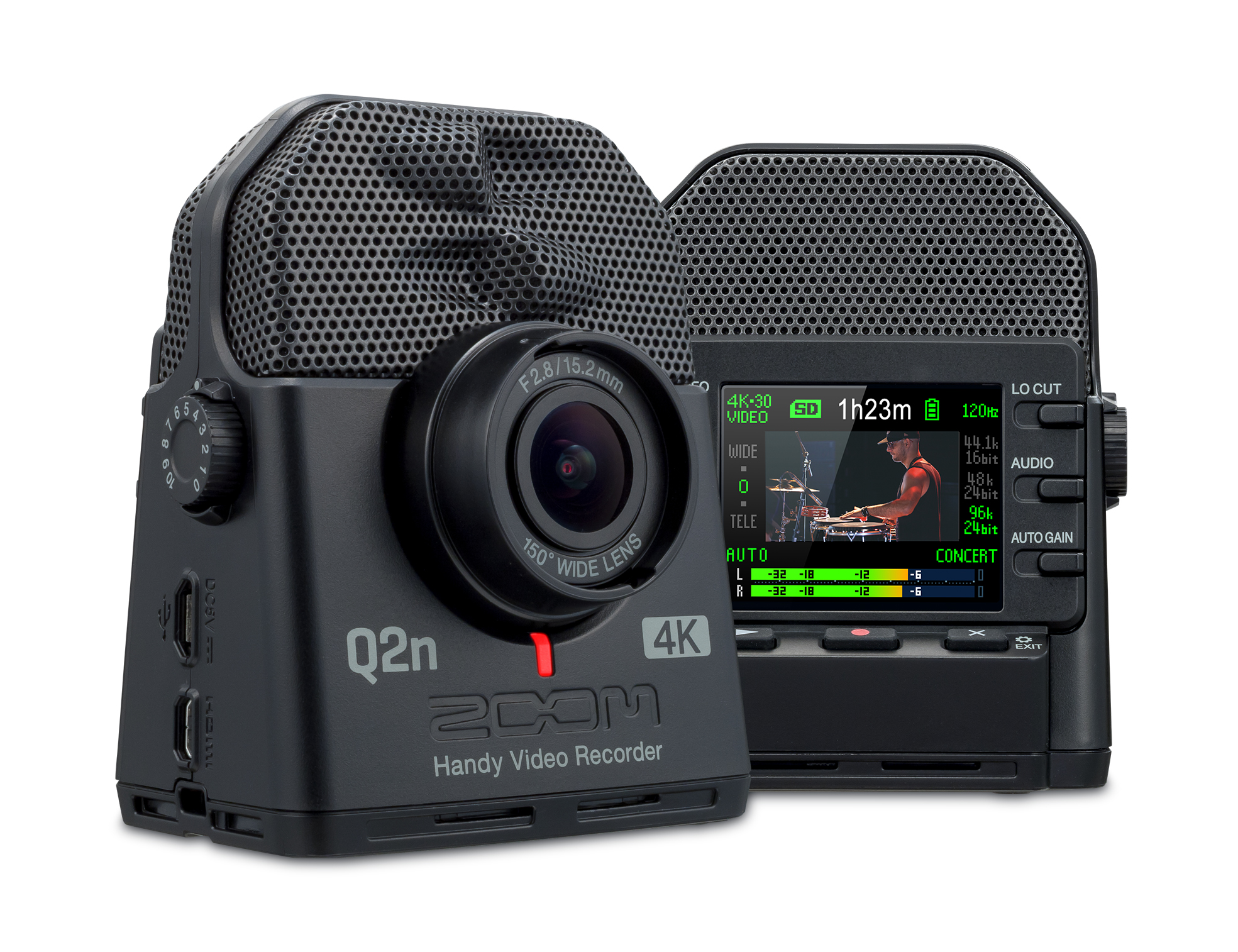

Display:

1.77" full-color LCD (160 × 128)

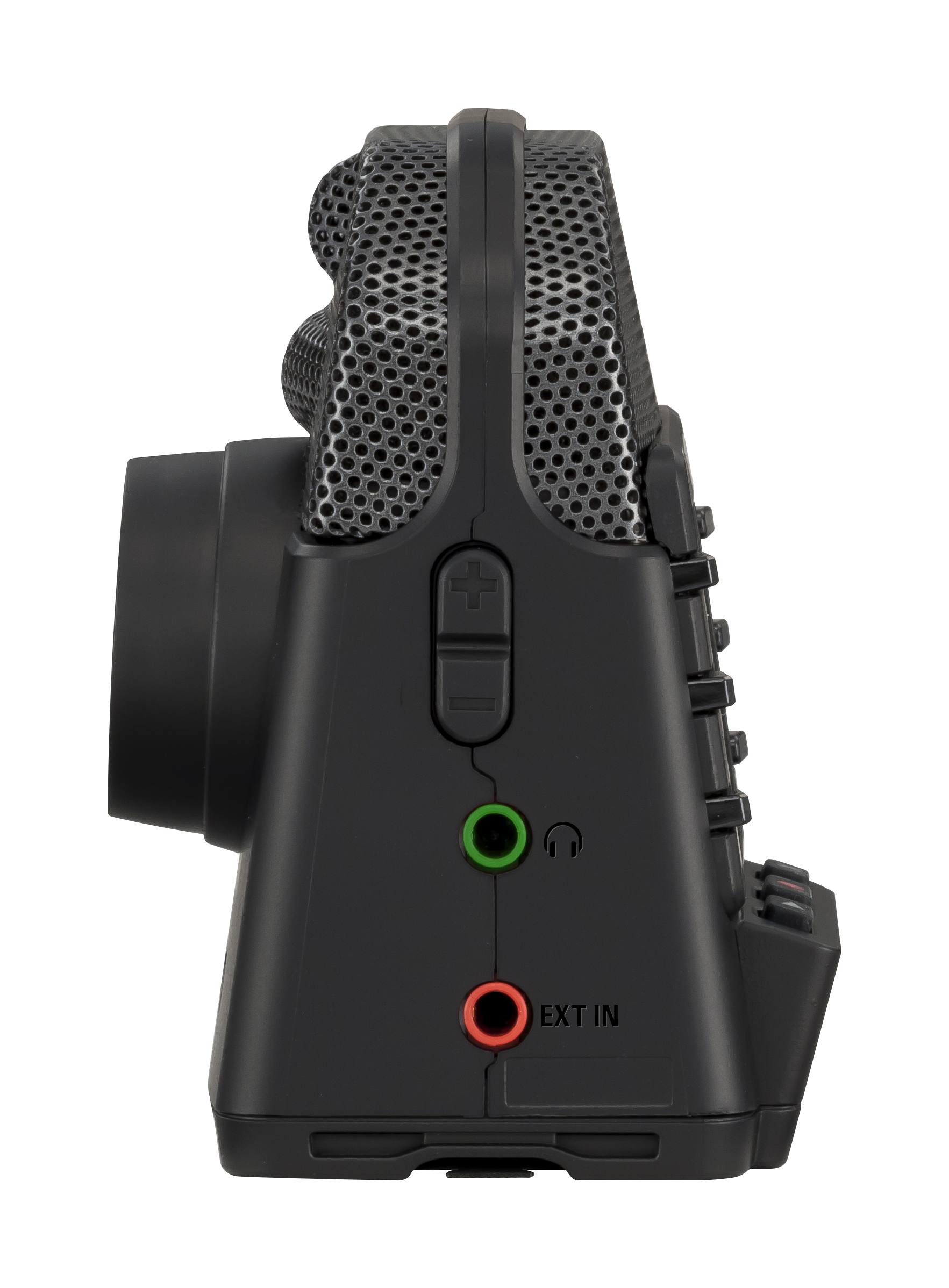

Audio inputs:

Mic
Fixed 120° XY stereo mic
Maximum sound pressure: 120 dBSPL
Input gain: −∞ db – +39 dB

Line
Input connector: stereo mini jack (supports plug-in power)
Input gain: −∞ db – +39 dB
2 kΩ or higher input impedance
Plug-in power (2.5 V) supported

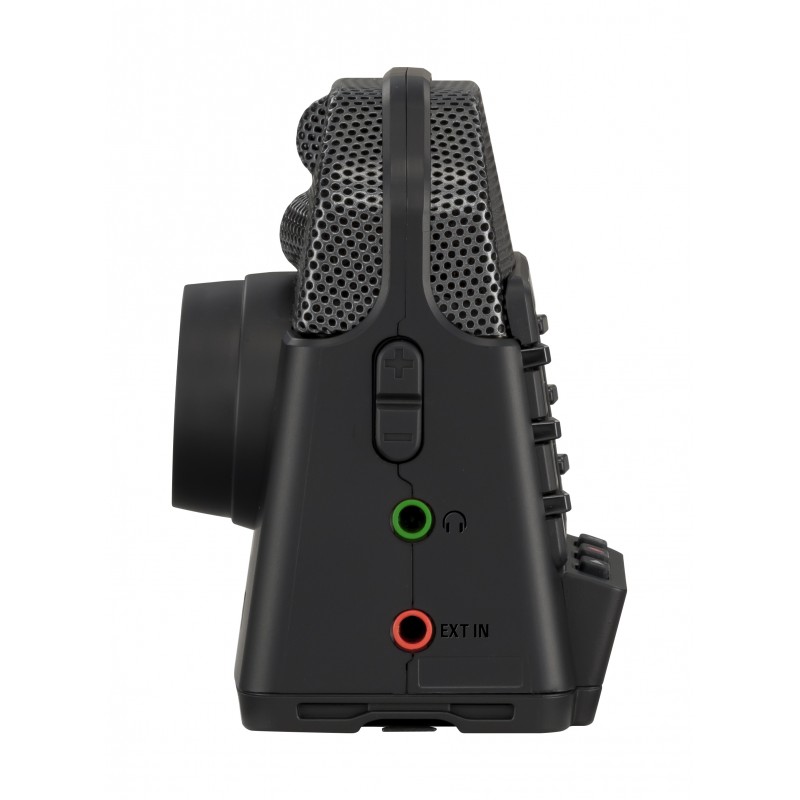

Output connector:

Combined headphone/line stereo mini jack
HDMI micro Type D

Built-in speaker:

300 mW 8 Ω mono speaker

Recording media:

microSDHC/microSDXC (class 10 or higher, 256 GB maximum)

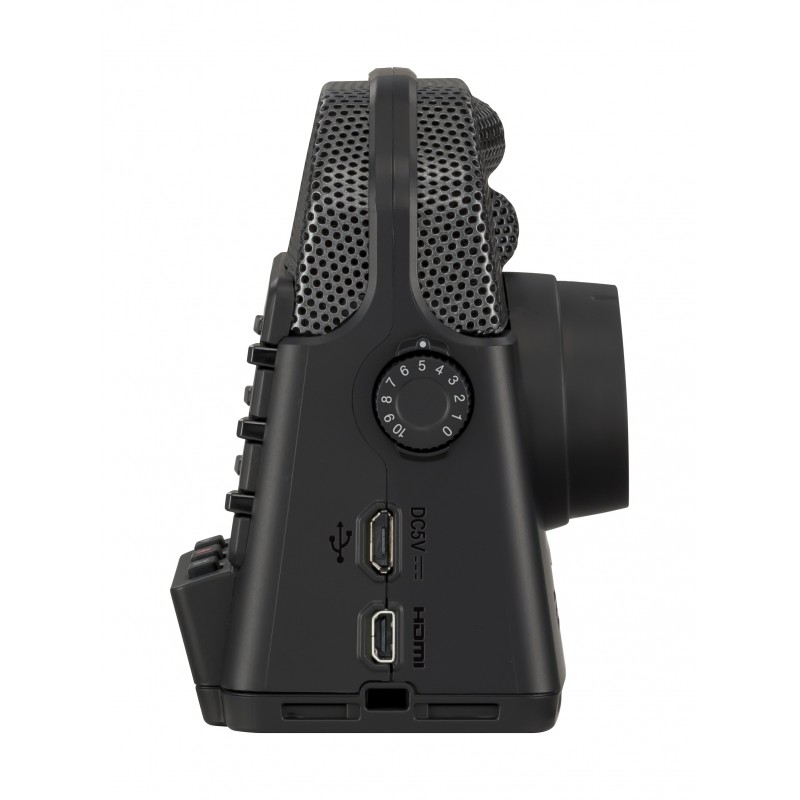

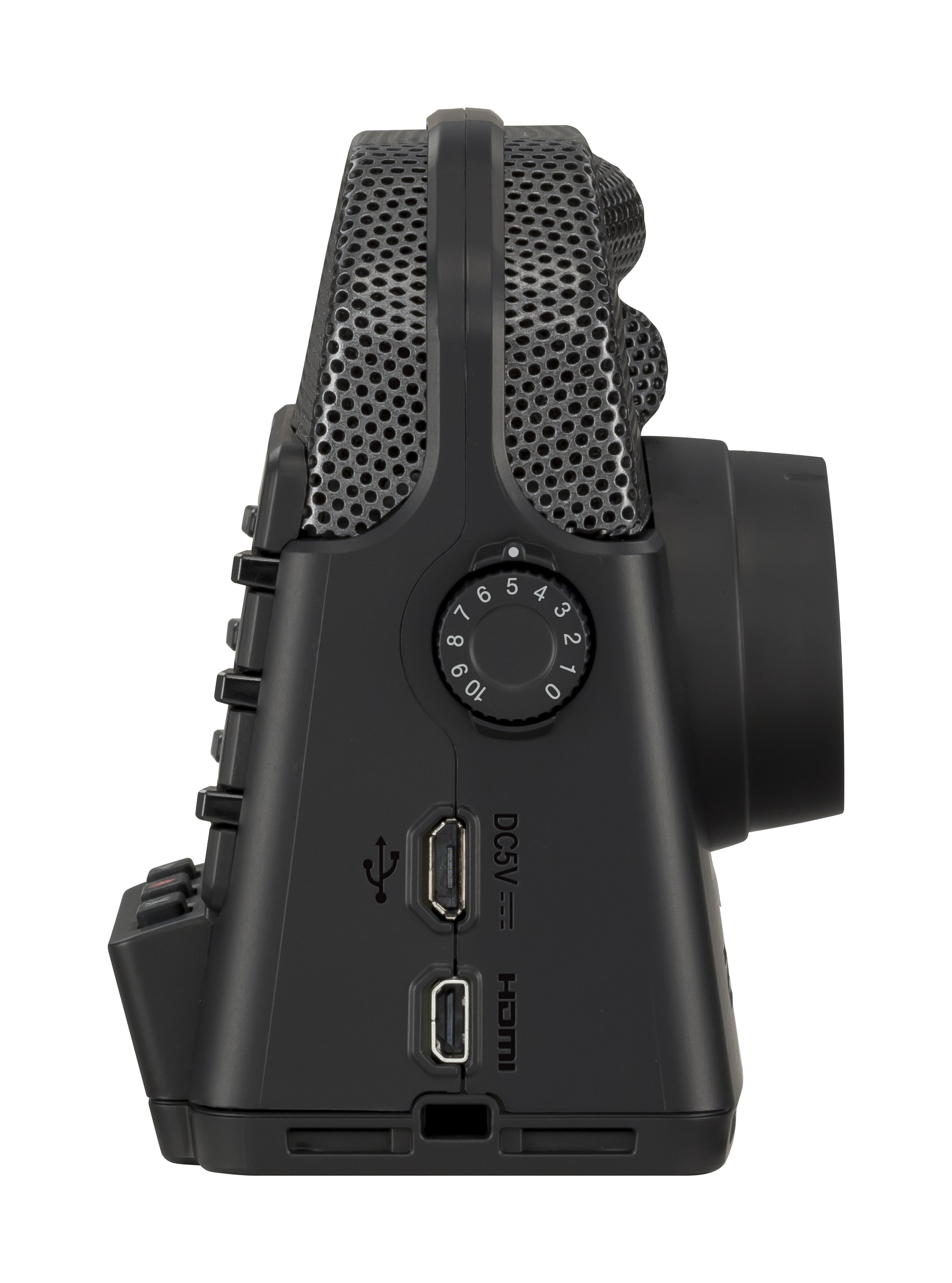

USB:

Connector: USB2.0 Micro-B

WEBCAM
Class: UVC 1.0 + UAC 1.0
Formats: 720 p WVGA video, 48 kHz/16-bit audio

CARD READER
Class: USB Mass Storage

USB MIC
Class: UAC 1.0
Format: 44.1 kHz/16-bit
Note: Card reader and USB mic functions support iOS/iPadOS devices

Supported cable: USB2.0 Micro-B cable
Use cables for data transfer. Cables for battery-charging cannot be used for the above purpose.

Power:

2 AA batteries : alkaline LR6 (1.5 V), nickel metal hydride HR6 (1.2 V) or lithium FR6 (1.5 V)
AC adapter (ZOOM AD-17): DC 5 V/1 A
Note: USB bus power supported

Estimated continuous recording time using batteries:

Video resolution	Alkaline LR6 (1.5 V)	Ni-MH HR6 (1.2 V)	Lithium FR6 (1.5 V)
720/30 p	2.0 hours	3.0 hours	6.0 hours
1080/30 p	1.2 hours	2.0 hours	4.0 hours
4K/30 p	0.5 hours	1.0 hours	2.0 hours

Audio quality: 48 kHz/24-bit

• The above values are approximate.
• Continuous battery operation times were determined using in-house testing
methods. They will vary greatly according to use conditions.

External dimensions:

Main unit (maximum dimensions): 58.7 mm (D) × 68.5 mm (W) × 83.0 mm (H)

Weight (main unit only):

124 g
