Avante Achromic AS8
SYSTEM INCLUDES:
• (1) 8-inch neodymium Subwoofer
• (1) Column with six 2-75-inch neodymium Speakers
• (1) Spacer

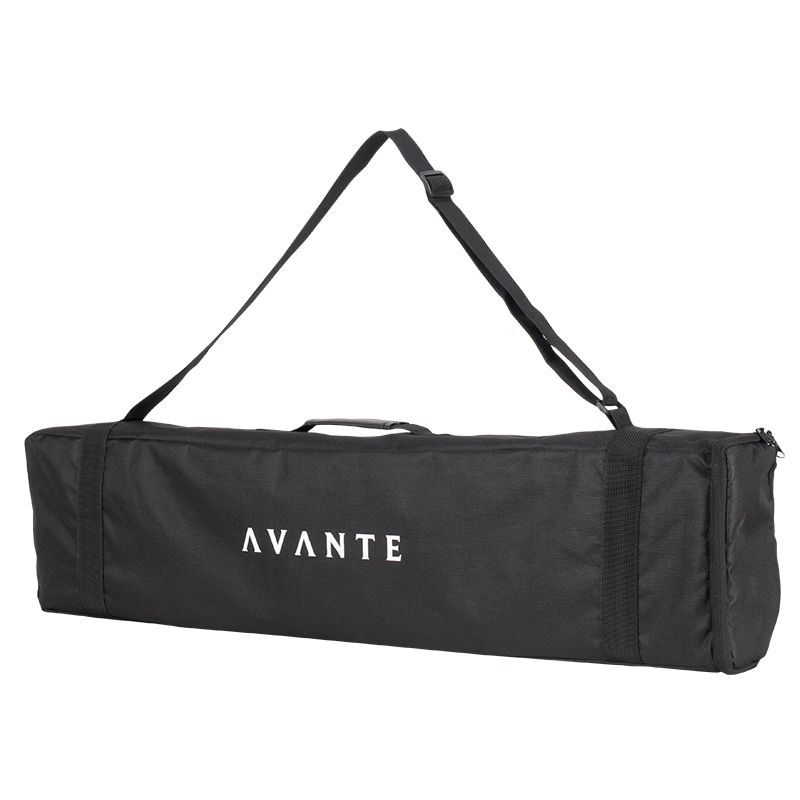

• (1) Carry bag for columns
AMPLIFIER:
• Inputs: Two XLR/TRS combo jacks, Stereo 1/4” inputs, Stereo 1/8” inputs, Bluetooth
• Outputs: XLR balanced line output
• Power output: RMS 250W (SUB) RMS, 800W peak
• Volume: Input Gain control per channel
• EQ: Main out 2 band EQ
• LEDs: Power/Clip indicator
• Power Input: 100-240V~50/60Hz switchable 250W
• Amplifier: Class D amplifier with switching power design

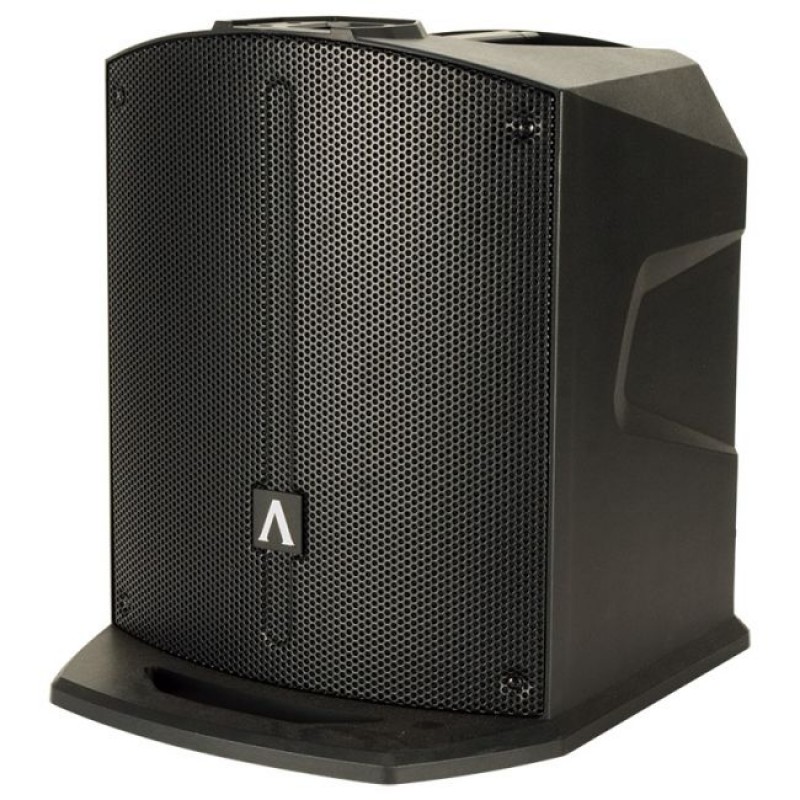

ACTIVE VENTED SUBWOOFER:
• Frequency Response: 55-200Hz
• Max Output SPL: 116dB (at max. amp output)
• Impedance: 4 Ohm
• Driver: 8-inch neodymium subwoofer, 1.5” voice coil, 28 oz. magnet
• Cabinet: PP plastic
• Grill: 1.0mm steel
• Dimensions: 350x430x413mm
• Weight: 13 kg.

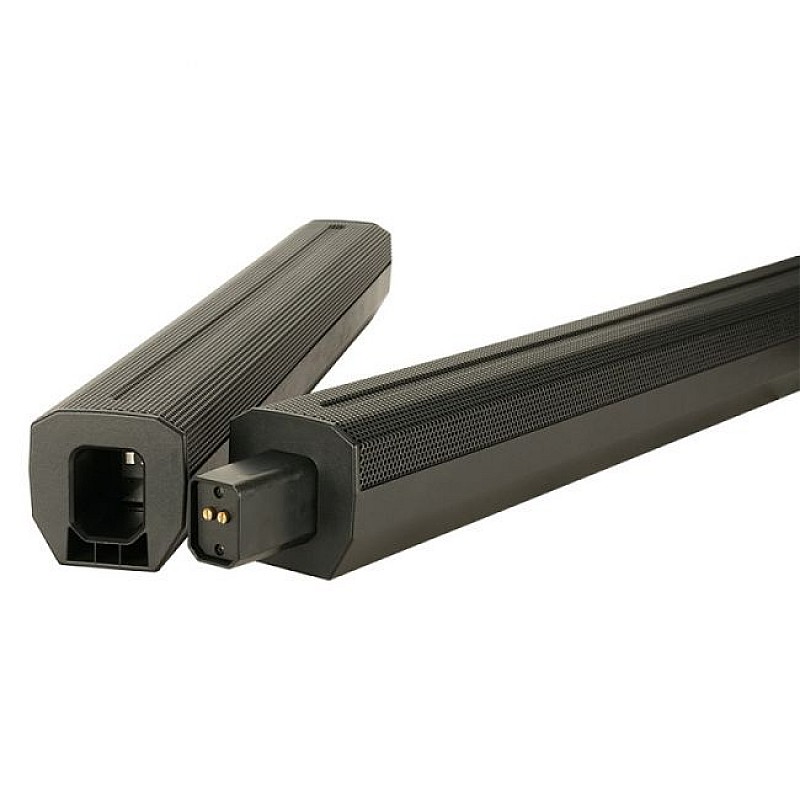

PASSIVE FULL-RANGE SPEAKER COLUMN:
• Frequency Response: 180-20kHz
• Max. output SPL: 110dB
• Impedance: 4 Ohm
• Driver: 6x 2.75-inch neodymium drivers
• Cabinet: PP plastic
• Grill: 1.0mm steel
• Dimensions: 96x96x870mm
• Weight: 5 kg. (each column)

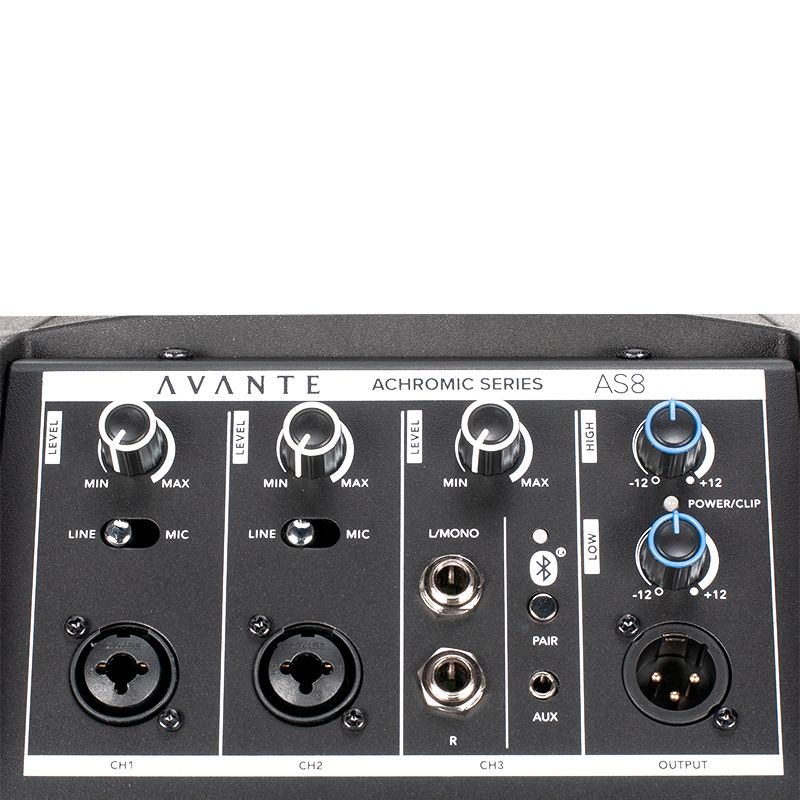

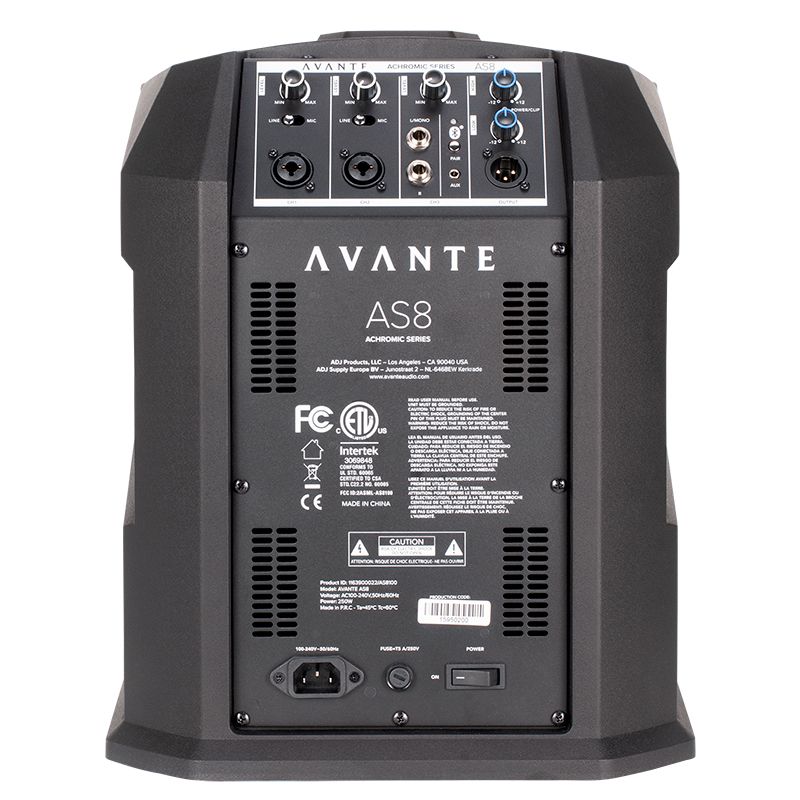

REAR PANEL:
• 4 input mixer with line out
• Mic/Line Input
• Guitar/Line Input
• 1/8” Aux Input
• Line Output
• Dual Band EQ
• BLUETOOTH® Connection

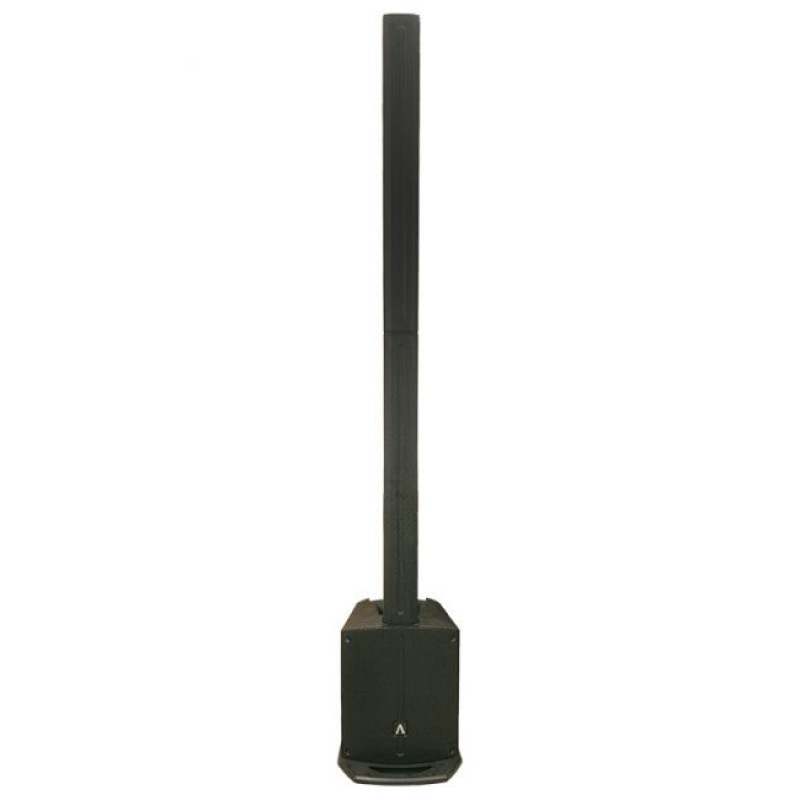

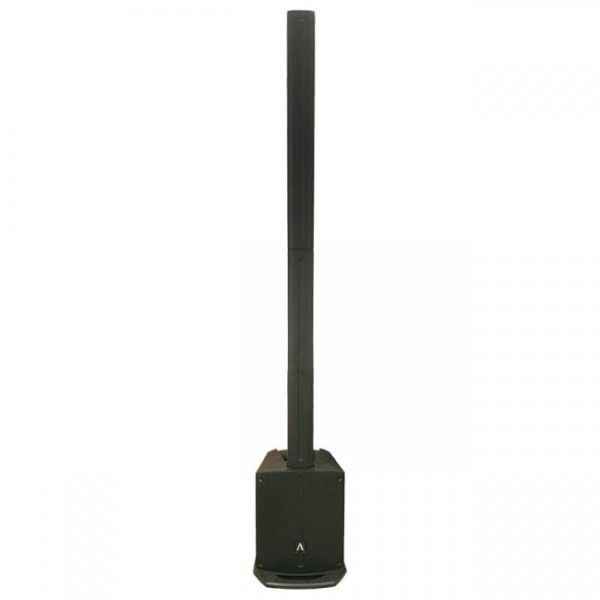

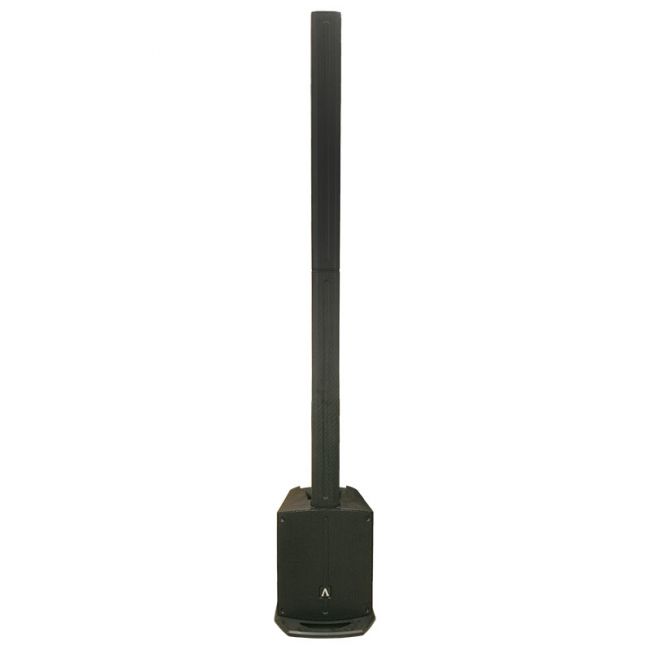

EXTENDED POSITION:
• Dimensions: 350x430x2010mm
• Weight: 23 kg.
COMPACT POSITION:
• Dimensions: 350x430x1210mm
• Weight: 18 kg.
